Water system installation is everything between your well and your faucet. The well makes the water. The system carries it into the house and holds pressure at every tap. It starts with a pitless adapter at the casing and a buried line that runs to the basement. Inside, a pressure tank and a switch keep the pressure steady. We handle that whole run, from Vineland and Clayton down to Cape May County. Some of these jobs are new construction. Most are older homes where the original setup has run out of life.
Most calls here start with weak pressure. A shower that fades when the washer runs. A hose bib that will not fill a stock tank. Sometimes the fix is a bigger pressure tank. Sometimes the old jet pump has to go, and a submersible pump in the well takes its place. Other times a leaking water line from well to house is bleeding pressure into the yard. We test the system before we quote any parts. Then we replace the pieces that are undersized and leave the ones that still do their job.
Tell us about your project and we will get right back to you.

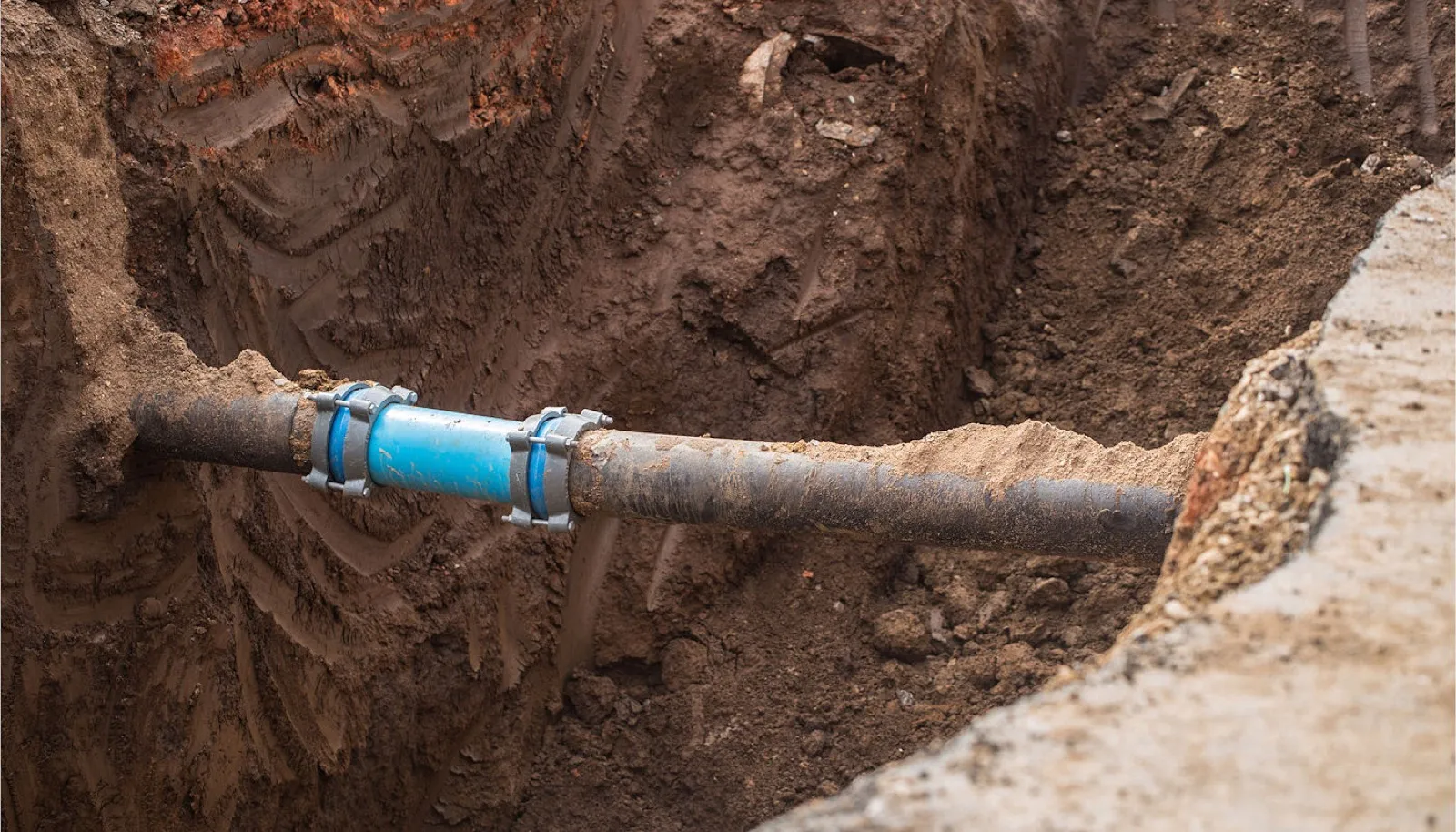

A whole house water system starts at the well casing, a few feet underground. A pitless adapter passes through the casing wall below the frost line. It carries water from the drop pipe into a buried line. That line runs to the house about four feet down. Inside, the water hits a pressure tank and a pressure switch. The switch tells the pump when to run. The tank holds a cushion so the pump does not start every time you wash up.
A well water system is only as good as its smallest part. Sizing is where these jobs go right or wrong. A 3/4 inch line may be fine for a small cottage. A house with three bathrooms and a sprinkler zone needs more pipe and more tank. Before we pick parts we count the fixtures and measure the run from the well. On a replacement we also check the wire feeding the pump, since undersized wire drops voltage and shortens pump life.
Plenty of older cottages and farmhouses down here still run on a jet pump. It sits in the basement or a well house and pulls water up through a suction line. It has to hold prime to work. A shallow jet pump is limited to roughly 25 feet of lift. That is why so many struggle in a dry summer. When the water level drops, the pump loses prime and the taps sputter. A jet to submersible conversion moves the work down into the well.

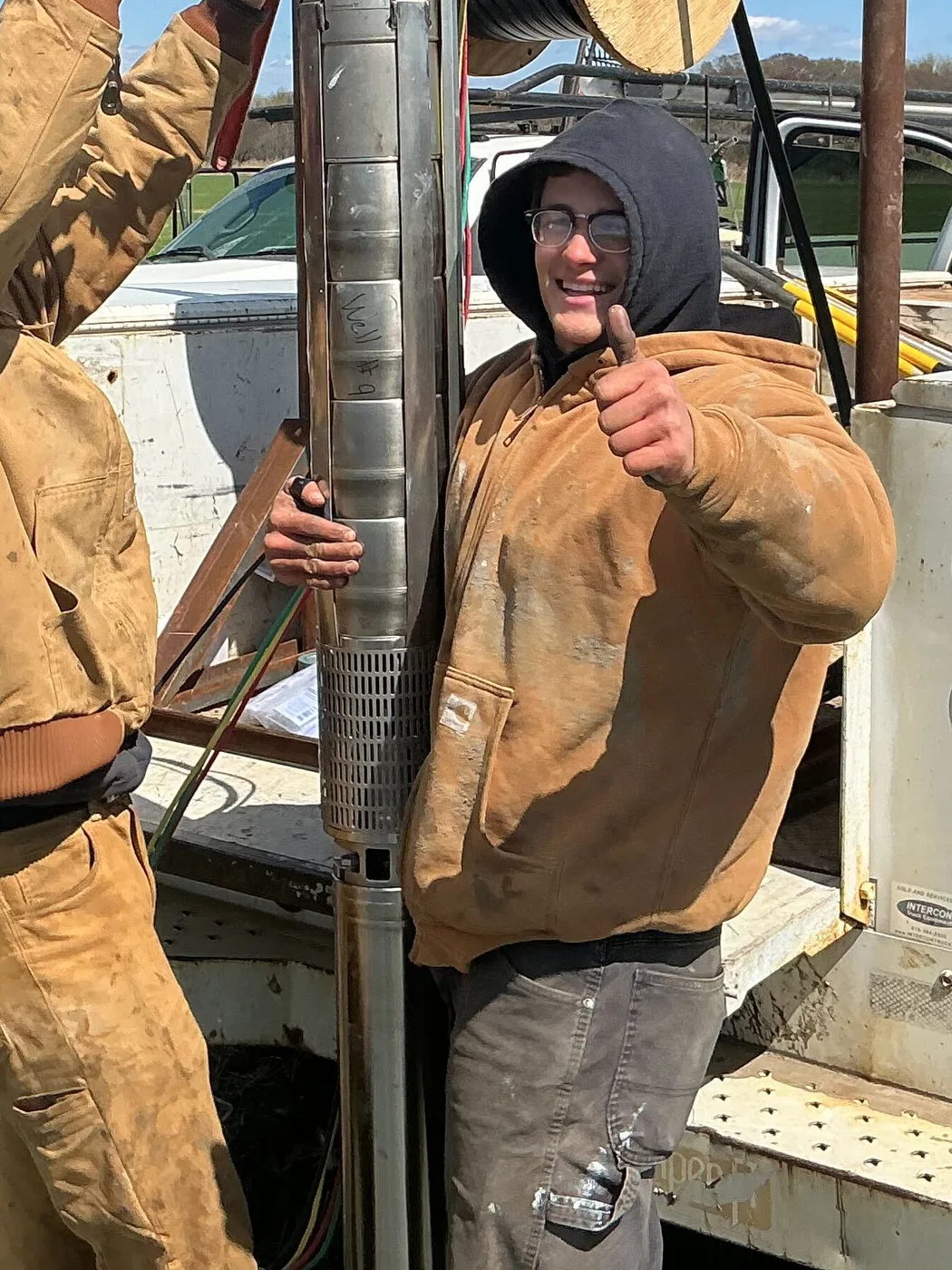

The conversion puts a submersible pump in the well. It pushes water up instead of pulling it, so prime is no longer your problem. Most homeowners notice the quiet first, then the pressure holding while the dishwasher runs. We pull the old suction line and set a new pump on new drop pipe. Fresh wire goes down with it, and a pitless adapter goes in at the casing. On a deep well with steady yield, a two pipe jet setup can still be right.
A finished basement adds a bathroom. A sprinkler zone goes in, or a pool gets filled every spring. The well may handle it fine, but the system between it and the house often cannot. A pressure tank sized for one bathroom short cycles once you add a second. An old 3/4 inch supply line chokes flow whatever the pump does. These are the well upgrades we do most. A bigger tank, a larger supply line, a pump sized to the new demand.

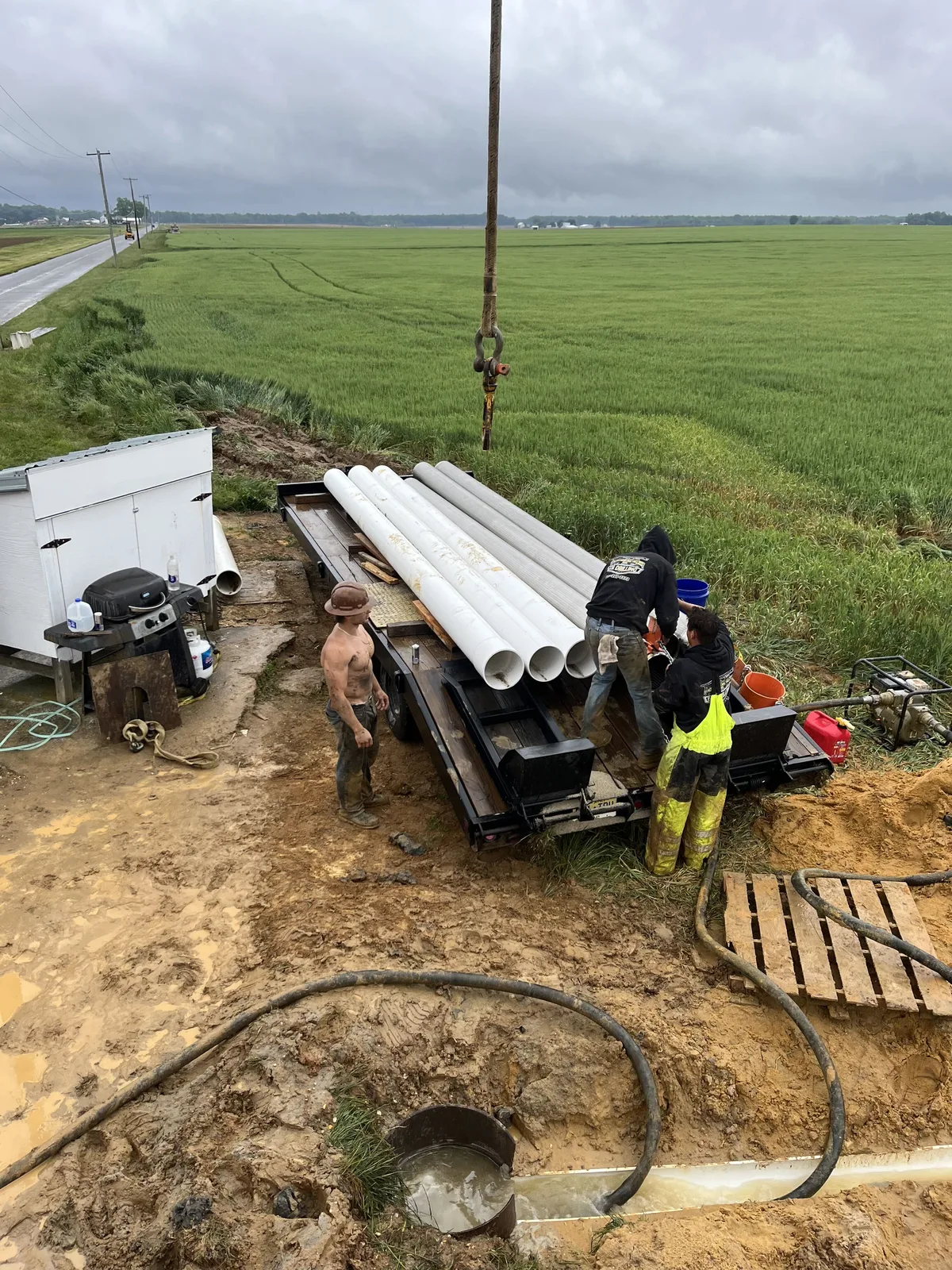

New construction is the other half of this work. The water system has to be in before the certificate of occupancy. We coordinate with the builder so the trench is open when we arrive. The line goes in below frost and the pitless adapter gets installed at the casing. The tank and switch get mounted where the plumber wants them. We pull the NJDEP well permit before the rig shows up. Then we pressure test the line before anything gets buried.
From the first look at the property to water proven at your tap, here is exactly how it goes.
A real person answers, takes what is happening at the house, and gets you on the schedule. A no-water emergency moves to the front of the line, whatever day of the week it is.
We check the property and the state well records for your block, then give you a free estimate with a real number. Depth, casing and pump size set the cost, so we look before we quote.
The rig or the service truck shows up when we said. Permits are filed before drilling starts, and the owners are on the machines. Anything unexpected down the hole, you hear about it right away.
The job ends with proof: yield checked, pressure holding, and the water tested. You get the paperwork, and the well record goes to the state. If anything acts up after, you call the same number.
Common questions about water systems across all of South Jersey. Yours not here? Call and ask the crew directly.
When the taps go dry, we find out why. Our crew handles well pump repair day or night, from Vineland and Clayton to Cape May County. We answer the phone 24/7.
View Details
Replacing a worn out well pump or pressure tank on shallow sand wells and deep coastal wells alike. New pumps sized to the well and to the water the house uses.
View Details
We test well water across South Jersey, then build the treatment system the results call for. Iron filters, acid neutralizers, sulfur removal and UV disinfection, sized to your well.
View Details
We install, replace and repair water softeners for well and city water homes. Every job starts with a hardness test, so the unit we size matches your real demand.
View Details
An open well is a hazard on your property and a problem at closing. We seal unused and failed wells to state standards, then file the record with NJDEP.
View Details
We drill and equip wells for farms, nurseries, campgrounds, and commercial buildings across South Jersey. That means bigger casing and higher pumping rates, sized to the water your operation uses each day.
View DetailsDrilling, pumps, pressure tanks, testing, treatment and sealing. The rigs and the service trucks belong to the same outfit, so one call covers the whole system.
A house without water is an emergency, and we run the operation that way. Call day or night. Phone triage is free, and if it needs a truck, a truck moves.
We look at the actual property and the well records for your block, then price the job in writing. You hear what is worth doing and what is not before anything starts.
Based in Vineland and Clayton, working six counties. We know what Cohansey sand, acidic water and shore-side salt do to wells here, and we drill and service for it.
No water, weak pressure, a well to drill, water that needs testing or treatment? Call or send the form and we will price the job from your property, free. For a house that is dry right now, the phone answers 24/7.
